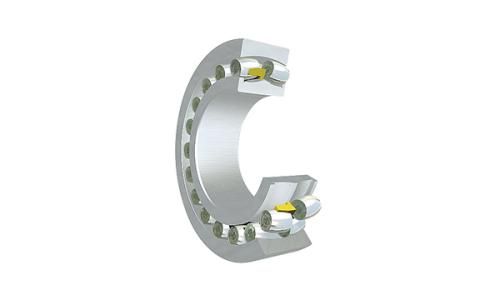

Spherical roller bearings

Spherical roller bearings

LYC’s spherical roller bearings are designed with an outer ring featuring a spherical raceway and an inner ring with dual raceways, accompanied by one or two cages and a set of spherical rollers. The spherical raceway center of the outer ring aligns with the bearing’s center, endowing it with self-aligning properties. This capability allows the bearing to accommodate angular misalignment or shaft deflections caused by housing misalignment or bending of the axle.

Key Features:
  • High Load Capacity: These bearings can support substantial radial loads as well as axial loads in both directions, making them ideal for applications involving heavy or impact loads.
  • Self-Alignment: The permissible misalignment angle typically ranges from 1° to 2.5° under standard operating conditions. However, this range may decrease if the bearing is equipped with seals.
  • Lower Speed Limit: While they excel in load-bearing capacity, spherical roller bearings operate at a lower speed limit compared to other bearing types, making them best suited for applications where durability under load is more critical than speed.
Typical Applications:
  • Heavy machinery, such as mining and construction equipment
  • Gearboxes and transmission systems with potential shaft misalignment
  • Industrial fans and rollers

Designation Principal dimensions Basic load ratings Limiting speed
Dynamic Static Grease Oil
d D B Cr Cor RPM RPM
mm mm mm KN KN r/min r/min
22205CAK/W33 25 52 18 36.1 36.6 8500 11000
22205CA/W33 25 52 18 36.1 36.6 8500 11000
22206CK/W33 30 62 20 51.7 55 7500 9500
22206X1CNK 30 68 20 51.7 55 7400 9400
22206C/W33 30 62 20 51.7 55 7500 9500
22206X1CN 30 68 20 51.7 55 7400 9400
22207K/W33 35 72 23 68.9 72.5 6300 8000
22207/W33 35 72 23 68.9 72.5 6300 8000
22208CK/W33 40 80 23 86.9 93.9 6000 7500
22308CK/W33 40 90 33 123 133 4500 5600
22308K/W33 40 90 33 121 129 4400 5500
22208C/W33 40 80 23 86.9 93.9 6000 7500
22308C/W33 40 90 33 123 133 4500 5600
22308/W33 40 90 33 121 129 4400 5500
22209CK/W33 45 85 23 86.7 101 5300 6700
22209K/W33 45 85 23 78.6 91.9 5200 6600
22309CK/W33 45 100 36 141 154 3800 4800
22209C/W33 45 85 23 86.7 101 5300 6700
22209/W33 45 85 23 78.6 91.9 5200 6600
22309C/W33 45 100 36 141 154 3800 4800
22310/W33 50 110 40 175 192 3300 4200
22210CK/W33 50 90 23 90.3 97 5000 6300
22210CA/W33 50 90 23 81.5 95.4 5000 6300
22310CK/W33 50 110 40 176 193 3400 4300
22310K/W33 50 110 40 175 192 3300 4200
22210C/W33 50 90 23 90.3 97 5000 6300
22210CA/W33 50 90 23 81.5 95.4 5000 6300
22310C/W33 50 110 40 176 193 3400 4300
22211CK/W33 55 100 25 109 130 4500 5600
22211CAK/W33 55 100 25 109 130 4500 5600
22311CK/W33 55 120 43 210 243 3200 4000
22211C/W33 55 100 25 109 130 4500 5600
22211CA/W33 55 100 25 109 130 4500 5600
22311C/W33 55 120 43 210 243 3200 4000
22312CAK/W33 60 130 46 233 274 2900 3800
22312C/W33 60 130 46 246 288 2900 3800
22312/W33 60 130 46 233 260 2900 3800
22312CA/W33 60 130 46 233 274 2900 3800
22212C/W33 60 110 28 129 157 4000 5000
22212CK/W33 60 110 28 129 157 4000 5000
22312CK/W33 60 130 46 246 288 2900 3800
22312K/W33 60 130 46 233 260 2900 3800
22213CK/W33 65 120 31 144 178 3800 4800
22213CAK/W33 65 120 31 156 195 3800 4800
22313K/W33 65 140 48 285 315 2600 3400
22313CAK/W33 65 140 48 285 315 2600 3400
22213C/W33 65 120 31 144 178 3800 4800
22213CA/W33 65 120 31 156 195 3800 4800
21313 65 140 33 203 242 3800 3600
22313/W33 65 140 48 285 315 2600 3400
22313CA/W33 65 140 48 285 315 2600 3400
22214CK/W33 70 125 31 163 207 3600 4500
22214K/W33 70 125 31 156 199 3500 4400
22314CK/W33 70 150 51 306 370 2400 3200
22314K/W33 70 150 51 311 352 2000 2800
22214C/W33 70 125 31 163 207 3600 4500
22314CAK/W33 70 150 51 293 351 2000 2800
22214/W33 70 125 31 156 199 3500 4400
21314 70 150 35 216 276 2600 3400
22314C/W33 70 150 51 306 370 2400 3200
22314/W33 70 150 51 311 352 2000 2800
22314CA/W33 70 150 51 293 351 2000 2800
22215 CK/W 75 130 31 162 212 3400 4300
22215K/W33 75 130 31 155 211 3400 4300
22315CK/W33 75 160 55 350 427 2200 3000
22215C/W33 75 130 31 162 212 3400 4300
22215/W33 75 130 31 155 211 3400 4300
22315C/W33 75 160 55 350 427 2200 3000
22216CK/W33 80 140 33 187 248 3200 4000
22216K/W33 80 140 33 186 252 3200 4000
22316CK/W33 80 170 58 400 504 2000 2800
22316K/W33 80 170 58 388 446 2000 2800
22216C/W33 80 140 33 187 248 3200 4000
22216/W33 80 140 33 186 252 3200 4000
22316C/W33 80 170 58 400 504 2000 2800
22316/W33 80 170 58 388 446 2000 2800
22317/W33 85 180 60 426 512 1900 2600
22217CK/W33 85 150 36 204 262 3000 3800
22217K/W33 85 150 36 192 250 3000 3800
22317K/W33 85 180 60 426 512 1900 2600
22217/W33 85 150 36 192 250 3000 3800
22217C/W33 85 150 36 204 262 3000 3800
22317ZMA/W33/C4 85 180 60 392 498 1900 2600
22318CK/W33 90 190 64 494 636 1800 2400
24018C 90 140 50 265 440 2700 3500
23218CK/W33 90 160 52.4 305 434 1900 2600
24018CK 90 140 50 265 440 2700 3500
22218CK/W33 90 160 40 257 340 2600 3400
22218K/W33 90 160 40 250 334 2600 3400
22318CAK/W33 90 190 64 483 594 1800 2400
22218C/W33 90 160 40 257 340 2600 3400
22318K/W33 90 190 64 475 583 1800 2400
22218/W33 90 160 40 250 334 2600 3400
23218C/W33 90 160 52.4 305 434 1900 2600
22318C/W33 90 190 64 494 636 1800 2400
22318CA/W33 90 190 64 483 594 1800 2400
22318/W33 90 190 64 475 583 1800 2400
22219CK/W33 95 170 43 284 380 2400 3200
22319CAK/W33 95 200 67 509 637 1700 2200
22319K/W33 95 200 67 517 617 1600 2100
22219C/W33 95 170 43 284 380 2400 3200
22319CA/W33 95 200 67 509 637 1700 2200
22319/W33 95 200 67 517 617 1600 2100
22319ZMA/W33/C4 95 200 67 509 637 1700 2200
22220CK/W33 100 180 46 331 441 2200 3000
22220CAK/W33 100 180 46 331 441 2100 2900
22220K/W33 100 180 46 314 416 2100 2900
23220CK/W33 100 180 60.3 420 605 1700 2200
22320CK/W33 100 215 73 623 792 1700 2200
22320CAK/W33 100 215 73 614 785 1600 2100
22220C/W33 100 180 46 331 441 2200 3000
22220CA/W33 100 180 46 331 441 2100 2900
22320K/W33 100 215 73 614 785 1600 2100
22220/W33 100 180 46 314 416 2100 2900
23220C/W33 100 180 60.3 420 605 1700 2200
22320C/W33 100 215 73 623 792 1700 2200
22320CA/W33 100 215 73 614 785 1600 2100
22320/W33 100 215 73 614 785 1600 2100
22320ZCA/W33 100 215 73 543 698 1600 2100
23121K/W33 105 175 56 351 564 1900 2600
23121/W33 105 175 56 351 564 1900 2600
23121N 105 175 56 351 564 1900 2600
24022C 110 170 60 359 605 1700 2500
22322CAK/W33 110 240 80 739 982 1600 2000
23122/W33 110 180 56 365 562 1900 2600
22322K/W33 110 240 80 750 915 1500 1900
23122N 110 180 56 365 562 1900 2600
23022 K/W33 110 170 45 293 465 2200 3000
24022CK30 110 170 60 359 605 1700 2500
23122 K/W33 110 180 56 365 562 1900 2600
24122K30/W33 110 180 69 483 754 1600 2000
23222 CK/W33 110 200 69.8 515 760 1600 2000
23022N 110 170 45 293 465 2200 3000
24122CAK30/W33 110 180 69 435 721 1500 1800
22222CK/W33 110 200 53 426 588 2000 2800
23022/W33 110 170 45 293 465 2200 3000
22222K/W33 110 200 53 366 531 1900 2700
23322K/W33 110 240 92.1 799 998 1400 1700
24122C/W33 110 180 69 483 754 1600 2000
24122CA/W33 110 180 69 435 721 1500 1800
22222C/W33 110 200 53 426 588 2000 2800
22222/W33 110 200 53 366 531 1900 2700
23222C/W33 110 200 69.8 515 760 1600 2000
22322CA/W33 110 240 80 739 982 1600 2000
22322/W33 110 240 80 750 915 1500 1900
23322/W33 110 240 92.1 799 998 1400 1700
22322 ZMA/W33 110 240 80 629 795 1600 2000
24022CC/W33C4S2 110 170 60 359 605 1700 2500
22322CA/C3W33YA 110 240 80 728 963 1600 2000
23024K/W33 120 180 46 315 527 1800 2500
24024CAK30/W33 120 180 60 395 686 1500 2000
23124K/W33 120 200 62 410 660 1700 2300
24124CAK30/W33 120 200 80 561 919 1300 1700
24124CK30/W33 120 200 80 589 949 1400 1800
22224CK/W33 120 215 58 495 689 1900 2600
22224K/W33 120 215 58 489 656 1800 2500
23224CK/W33 120 215 76 595 910 1500 1900
23024/W33 120 180 46 315 527 1800 2500
22324CK/W33 120 260 86 842 1110 1400 1800
23024N 120 180 46 315 527 1800 2500
24024CA/W33 120 180 60 395 686 1500 2000
24024C/W33 120 180 60 395 686 1600 2000
23124/W33 120 200 62 410 660 1700 2300
23124N 120 200 62 410 660 1700 2300
24124CA/W33 120 200 80 561 919 1300 1700
24124C/W33 120 200 80 589 949 1400 1800
22224C/W33 120 215 58 495 689 1900 2600
22224/W33 120 215 58 489 656 1800 2500
23224C/W33 120 215 76 595 910 1500 1900
22324C/W33 120 260 86 842 1110 1400 1800
22324 ZMA/W33 120 260 86 746 954 1400 1800
24124CA/C3/YB 120 200 80 561 919 1300 1700
24126C/W33 130 210 80 633 1070 1300 1700
23026K/W33 130 200 52 400 655 1700 2300
23126CAK30/W33 130 210 64 499 777 1600 2200
24126CAK30/W34 130 210 80 633 1070 1300 1700
22226CK/W33 130 230 64 582 830 1800 2400
22226CAK/W33 130 230 64 552 786 1700 2300
22226K/W33 130 230 64 564 800 1700 2300
23226K/W33 130 230 80 700 1080 1300 1700
22326CAK/W33 130 280 93 930 1250 1300 1700
23126CA/W33 130 210 64 499 777 1600 2200
23026/W33 130 200 52 400 655 1700 2300
23026N 130 200 52 400 655 1700 2300
22226C/W33 130 230 64 582 830 1800 2400
22226CA/W33 130 230 64 552 786 1700 2300
22226/W33 130 230 64 564 800 1700 2300
23226C/W33 130 230 80 700 1080 1300 1700
22326CA/W33 130 280 93 930 1250 1300 1700
24126 CA/W33 130 210 80 581 982 1300 1700
24126 CA/C3W33 130 210 80 581 982 1300 1700
22326 ZMA/W33 130 280 93 836 1090 1300 1700
22228CK/W33 140 250 68 642 931 1700 2200
22228CAK/W33 140 250 68 636 897 1500 1900
22228K/W33 140 250 68 662 905 1500 1900
23028K/W33 140 210 53 395 705 1600 2100
24028CK30/W33 140 210 69 530 910 1400 1800
23128CAK/W33 140 225 68 560 925 1500 1800
24128CAK30/W33 140 225 85 620 1060 1100 1500
23228CK/W33 140 250 88 835 1300 1200 1600
22328CAK/W33 140 300 102 1120 1550 1100 1500
22328K/W33 140 300 102 1100 1420 1100 1500
23028/W33 140 210 53 395 705 1600 2100
23028N 140 210 53 395 705 1600 2100
24028C/W33 140 210 69 530 910 1400 1800
23128CA/W33 140 225 68 560 925 1500 1800
24128CA/W33 140 225 85 620 1060 1100 1500
22228C/W33 140 250 68 642 931 1700 2200
22228CA/W33 140 250 68 636 897 1500 1900
22228/W33 140 250 68 662 905 1500 1900
23228C/W33 140 250 88 835 1300 1200 1600
22328CA/W33 140 300 102 1120 1550 1100 1500
22328/W33 140 300 102 1100 1420 1100 1500
24128 CC/W33/C4 140 225 85 649 1120 1100 1500
22328 ZMA/W33 140 300 102 978 1290 1100 1500
22230C/W33 150 270 73 749 1050 1600 2000
22230/W33 150 270 73 736 1030 1500 1900
23230C/W33 150 270 96 907 1350 1100 1500
23030K/W33 150 225 56 407 725 1500 1900
23130CAK/W33 150 250 80 683 1170 1300 1600
24130CK30/W33 150 250 100 951 1570 1000 1400
24130CAK30/W33 150 250 100 861 1420 900 1300
22230CK/W33 150 270 73 749 1050 1600 2000
22230K/W33 150 270 73 736 1030 1500 1900
23230CK/W33 150 270 96 907 1350 1100 1500
22330CAK/W33 150 320 108 1220 1680 1000 1400
22330K/W33 150 320 108 1210 1660 1000 1400
23030/W33 150 225 56 407 725 1500 1900
23130CA/W33 150 250 80 683 1170 1300 1600
24130C/W33 150 250 100 951 1570 1000 1400
24130CA/W33 150 250 100 861 1420 900 1300
22330CA/W33 150 320 108 1220 1680 1000 1400
22330/W33 150 320 108 1210 1660 1000 1400
22330 ZMA/W33 150 320 108 1140 1580 1000 1400
22330CA/C3W33YA 150 320 108 1210 1660 1000 1400
24030CC/W33C4S2 150 225 75 580 1060 1450 1850
22332K/W33 160 340 114 1340 1840 930 1200
23032K/W33 160 240 60 495 875 1500 1900
24032CK30/W33 160 240 80 660 1220 1100 1500
23132K 160 270 86 820 1200 1200 1600
23132CAK/W33 160 270 86 833 1290 1200 1600
23232CAK 160 290 104 1020 1550 900 1300
24132CK30/W33 160 270 109 1070 1750 950 1300
22232CAK/W33 160 290 80 850 1230 1400 1800
22232K/W33 160 290 80 876 1230 1350 1700
23032N 160 240 60 495 875 1500 1900
23032/W33 160 240 60 495 875 1500 1900
24032C/W33 160 240 80 660 1220 1100 1500
23132 160 270 86 820 1200 1200 1600
23132CA/W33 160 270 86 833 1290 1200 1600
24132C/W33 160 270 109 1070 1750 950 1300
22232CA/W33 160 290 80 850 1230 1400 1800
22232/W33 160 290 80 876 1230 1350 1700
23232CA 160 290 104 1020 1550 900 1300
22332/W33 160 340 114 1340 1840 930 1200
22332ZMA/W33/C4 160 340 114 1140 1580 930 1200
24032 CA/W33 160 240 80 628 1140 1100 1500
23034 K/W33 170 260 67 640 1040 1400 1800
24034CK30/W33 170 260 90 778 1310 1000 1400
22334/W33 170 360 120 1500 2140 930 1200
22234K/W33 170 310 86 981 1390 1200 1600
23234CAK/W33 170 310 110 1200 1900 950 1300
22334K/W33 170 360 120 1500 2140 930 1200
23034N 170 260 67 640 1040 1400 1800
23034/W33 170 260 67 640 1040 1400 1800
24034C/W33 170 260 90 778 1310 1000 1400
22234/W33 170 310 86 981 1390 1200 1600
23234CA/W33 170 310 110 1200 1900 950 1300
23036/W33 180 280 74 710 1210 1300 1600
24036/W33 180 280 100 930 1610 900 1200
23036K/W33 180 280 74 710 1210 1300 1600
24036K30/W33 180 280 100 930 1610 900 1200
23136CK/W33 180 300 96 1060 1800 1100 1500
23136K/W33 180 300 96 987 1720 1000 1400
24136K30/W33 180 300 118 1170 1930 900 1200
22236K/W33 180 320 86 995 1510 1200 1600
23236CAK/W33 180 320 112 1310 2090 900 1200
22336K/W33 180 380 126 1650 2330 900 1200
23136C/W33 180 300 96 1060 1800 1100 1500
23136/W33 180 300 96 987 1720 1000 1400
23136/W33YA2 180 300 96 987 1720 1000 1400
23136 N 180 300 96 987 1720 1000 1400
24136/W33 180 300 118 1170 1930 900 1200
22236/W33 180 320 86 995 1510 1200 1600
23236CA/W33 180 320 112 1310 2090 900 1200
23236CA/W33YA2 180 320 112 1310 2090 900 1200
22336/W33 180 380 126 1650 2330 900 1200
24036C/P69 W33 180 280 100 917 1710 900 1200
23238CAK/W33 190 340 120 1490 2380 850 1100
22338K/W33 190 400 132 1850 2590 850 1100
23038 K/W33 190 290 75 800 1500 1200 1500
24038CK30/W33 190 290 100 938 1690 950 1300
23138K/W33 190 320 104 1050 1760 950 1300
22238K/W33 190 340 92 1090 1640 1200 1600
23138CAK/W33 190 320 104 1140 1960 950 1300
24138CAK30/W33 190 320 128 1290 2250 850 1100
22238 CAK/W33 190 340 92 1140 1730 1200 1600
2638 190 280 67 633 1120 1200 1500
23038/W33 190 290 75 800 1500 1200 1500
24038C/W33 190 290 100 938 1690 950 1300
23138/W33 190 320 104 1050 1760 950 1300
23138CA/W33 190 320 104 1140 1960 950 1300
24138CA 190 320 128 1290 2250 850 1100
22238CA/W33 190 340 92 1140 1730 1200 1600
22238/W33 190 340 92 1090 1640 1200 1600
23238CA/W33 190 340 120 1490 2380 850 1100
22338/W33 190 400 132 1850 2590 850 1100
24140C/W33 200 340 140 1660 2810 800 1000
23240/W33 200 360 128 1490 2370 800 1000
23040 K/W33 200 310 82 870 1510 1100 1400
23140 K/W33 200 340 112 1230 2240 850 1200
24140CK30/W33 200 340 140 1660 2810 800 1000
22240K/W33 200 360 98 1210 1870 1100 1500
23240K/W33 200 360 128 1490 2370 800 1000
22340K/W33 200 420 138 1900 2800 850 1100
22240/W33 200 360 98 1210 1870 1100 1500
23040/W33 200 310 82 870 1510 1100 1400
23140/W33 200 340 112 1230 2240 850 1200
22340/W33 200 420 138 1900 2800 850 1100
24140CA/W33 200 340 140 1530 2620 800 1000
24140CA/C3W33 200 340 140 1530 2620 800 1000
23044K/W33 220 340 90 1100 1750 1100 1500
23144K/W33 220 370 120 1530 2640 900 1200
23144CAK/W33 220 370 120 1540 2650 850 1100
24144CK30/W33 220 370 150 1870 3350 750 950
22244K/W33 220 400 108 1570 2430 950 1300
22244CAK/W33 220 400 108 1570 2430 950 1300
23244 K/W33 220 400 144 1860 3100 750 950
22344K/W33 220 460 145 2130 3170 750 950
2644 220 320 76 758 1280 1000 1300
23044/W33 220 340 90 1100 1750 1100 1500
23144/W33 220 370 120 1530 2640 900 1200
23144CA/W33 220 370 120 1540 2650 850 1100
24144C/W33 220 370 150 1870 3350 750 950
22244/W33 220 400 108 1570 2430 950 1300
22244CA/W33 220 400 108 1570 2430 950 1300
23244/W33 220 400 144 1860 3100 750 950
22344/W33 220 460 145 2130 3170 750 950
23248K/W33 240 440 160 2280 3870 670 850
22348K/W33 240 500 155 2400 3600 670 850
23048 K/W33 240 360 92 1160 1870 1000 1400
24048CAK30/W33 240 360 118 1320 2610 800 1000
23148K/W33 240 400 128 1870 3000 850 1100
23148CAK/W33 240 400 128 1800 2950 850 1100
24148K30/W33 240 400 160 1980 3710 670 850
22248K/W33 240 440 120 1720 2700 900 1200
23048/W33 240 360 92 1160 1870 1000 1400
24048CA/W33 240 360 118 1320 2610 800 1000
23148/W33 240 400 128 1870 3000 850 1100
23148CA/W33 240 400 128 1800 2950 850 1100
24148/W33 240 400 160 1980 3710 670 850
22248/W33 240 440 120 1720 2700 900 1200
23248/W33 240 440 160 2280 3870 670 850
22348/W33 240 500 155 2400 3600 670 850
23948CA/W33 240 320 60 579 1220 1000 1400
2650 250 365 87 956 1870 880 1100
23052K/W33 260 400 104 1440 2570 900 1200
23152/W33 260 440 144 2290 3510 800 1000
24152/W33 260 440 180 2500 4560 720 900
24152CA/W33 260 440 180 2470 4320 600 750
24052CAK30/W33 260 400 140 1700 3260 700 900
23152K/W33 260 440 144 2290 3510 800 1000
24152K30/W33 260 440 180 2500 4560 720 900
24152CAK30/W33 260 440 180 2470 4320 600 750
24152CK30/W33 260 440 180 2350 4320 600 750
22252CAK/W33 260 480 130 2160 3100 850 1100
23252CAK/W33 260 480 174 2800 4100 560 720
22352K/W33 260 540 165 2860 4430 560 720
24052CA/W33 260 400 140 1700 3260 700 900
23052/W33 260 400 104 1440 2570 900 1200
24152C/W33 260 440 180 2350 4320 600 750
22252CA/W33 260 480 130 2160 3100 850 1100
23252CA/W33 260 480 174 2800 4100 560 720
2652 260 490 153 2420 3940 760 1050
22352/W33 260 540 165 2860 4430 560 720
23952CA/W33 260 360 75 883 1760 1000 1300
23056K/W33 280 420 106 1560 2560 850 1100
23056CAK/W33 280 420 106 1540 2950 800 1000
24056CAK30/W33 280 420 140 1780 3500 670 850
23156K/W33 280 460 146 2070 3960 750 950
23156CAK/W33 280 460 146 2380 3880 750 950
24156K30/W33 280 460 180 2400 4590 560 700
22256K/W33 280 500 130 2110 3370 800 1000
23256 K/W33 280 500 176 2560 4350 600 750
22356K/W33 280 580 175 3180 4970 600 750
23056/W33 280 420 106 1560 2560 850 1100
23056CA/W33 280 420 106 1540 2950 800 1000
24056CA/W33 280 420 140 1780 3500 670 850
23156/W33 280 460 146 2070 3960 750 950
23156CA/W33 280 460 146 2380 3880 750 950
24156/W33 280 460 180 2400 4590 560 700
22256/W33 280 500 130 2110 3370 800 1000
23256/W33 280 500 176 2560 4350 600 750
22356/W33 280 580 175 3180 4970 600 750
23956CA/W33 280 380 75 911 1860 900 1200
24156/W33/YA1 280 500 180 2360 4420 600 750
23160K/W33 300 500 160 2580 4590 670 850
23160CAK/W33 300 500 160 2880 4640 670 850
24160CK30/W33 300 500 200 3380 5940 530 670
23960CK/W33 300 420 90 1260 2460 950 1300
24060CAK30/W33 300 460 160 2430 4490 600 750
23060K/W33 300 460 118 1910 3170 720 920
23060CAK/W33 300 460 118 2090 3370 800 1000
24060CA/W33 300 460 160 2430 4490 600 750
24160CAK30/W33 300 500 200 3120 5650 500 600
24160K30/W33 300 500 200 3180 6100 450 550
22260K/W33 300 540 140 2480 3820 700 900
23060CA/W33 300 460 118 2090 3370 800 1000
23960C/W33 300 420 90 1260 2460 950 1300
23060/W33 300 460 118 1910 3170 720 920
23160/W33 300 500 160 2580 4590 670 850
23160CA/W33 300 500 160 2880 4640 670 850
24160C/W33 300 500 200 3380 5940 530 670
24160CA/W33 300 500 200 3120 5650 500 600
24160/W33 300 500 200 3180 6100 450 550
22260/W33 300 540 140 2480 3820 700 900
23160CC/C3W33 300 500 160 2700 4920 650 850
23964K/W33 320 440 90 1290 2430 900 1200
23064K/W33 320 480 121 1850 3450 720 900
23064CAK/W33 320 480 121 2020 3580 800 1000
24064K30/W33 320 480 160 2570 5060 680 850
23164CAK/W33 320 540 176 3390 5538 630 800
24164K30/W33 320 540 218 3470 6430 480 600
23264K/W33 320 580 208 3500 6360 500 630
23964/W33 320 440 90 1290 2430 900 1200
23064/W33 320 480 121 1850 3450 720 900
23064CA/W33 320 480 121 2020 3580 800 1000
24064/W33 320 480 160 2570 5060 680 850
23164CA/W33 320 540 176 3390 5538 630 800
24164/W33 320 540 218 3470 6430 480 600
23264/W33 320 580 208 3500 6360 500 630
24164/W33/YA 320 580 218 3470 6430 460 580
23968K/W33 340 460 90 1310 2520 880 1180
23068K/W33 340 520 133 2430 4350 680 880
24068K30/W33 340 520 180 2920 5580 510 650
24068CAK30/W33 340 520 180 3110 5710 520 660
23168CAK/W33 340 580 190 3830 6240 600 750
24168CAK30/W33 340 580 243 4180 7720 450 560
24168CA/W33 340 580 243 4180 7720 450 560
23068/W33 340 520 133 2430 4350 680 880
23968/W33 340 460 90 1310 2520 880 1180
24068/W33 340 520 180 2920 5580 510 650
24068CA/W33 340 520 180 3110 5710 520 660
23168CA/W33 340 580 190 3830 6240 600 750
23972K/W33 360 480 90 1330 2710 850 1100
23072K/W33 360 540 134 2480 4500 670 850
23972/W33 360 480 90 1330 2710 850 1100
23072/W33 360 540 134 2480 4500 670 850
23072CAK/W33 360 540 134 2390 4700 600 760
24072CK30/W33 360 540 180 3460 6350 500 630
24072CAK30/W33 360 540 180 3200 6160 480 620
23172K/W33 360 600 192 3400 6700 560 700
24172K30/W33 360 600 243 4400 8370 430 530
22372K/W33 360 750 224 4900 7500 450 550
23072CA/W33 360 540 134 2390 4700 600 760
24072C/W33 360 540 180 3460 6350 500 630
24072CA/W33 360 540 180 3200 6160 480 620
23172/W33 360 600 192 3400 6700 560 700
24172/W33 360 600 243 4400 8370 430 530
22372/W33 360 750 224 4900 7500 450 550
24172C 360 600 243 4670 9040 430 530
23976K/W33 380 520 106 1760 3420 800 1000
23076 K/W33 380 560 135 2280 4550 630 800
23076CAK/W33 380 560 135 2610 4850 630 800
24076K30/W33 380 560 180 3240 6460 480 600
23176 K/W33 380 620 194 3450 6800 400 500
23176CAKQ1/W33 380 620 194 3700 7000 400 500
22376K/W33 380 780 230 5340 8390 340 430
22376/W33 380 780 230 5340 8390 340 430
23976/W33 380 520 106 1760 3420 800 1000
23076/W33 380 560 135 2280 4550 630 800
23076CA/W33 380 560 135 2610 4850 630 800
24076/W33 380 560 180 3240 6460 480 600
23176/W33 380 620 194 3450 6800 400 500
23176CAQ1/W33 380 620 194 3700 7000 400 500
23076C 380 560 135 2480 5050 630 800
23080K/W33 400 600 148 2520 5450 540 670
2680K/W33 400 590 142 2300 5000 700 900
23180K/W33 400 650 200 3850 7540 380 480
23280 K/W33 400 720 256 5300 10100 340 430
24280K30/W33 400 720 315 6620 10400 310 390
22380K/W33 400 820 243 5900 9360 360 450
23180/W33 400 650 200 3850 7540 380 480
23280/W33 400 720 256 5300 10100 340 430
2680/W33 400 590 142 2300 5000 700 900
23080/W33 400 600 148 2520 5450 540 670
24280/W33 400 720 315 6620 10400 310 390
22380/W33 400 820 243 5900 9360 360 450
23080CA/C3W33 400 600 148 2850 5610 540 670
3G3-316 401 720 256 5300 10100 340 430
24084K30/W33 420 620 150 2690 5750 450 560
23184K/W33 420 700 224 4850 9300 360 450
24184CAK30/W33 420 700 280 5700 11300 300 380
23284CAK/W33 420 760 272 6450 11700 320 400
23084/W33 420 620 150 2690 5750 450 560
23184/W33 420 700 224 4850 9300 360 450
24184CA/W33 420 700 280 5700 11300 300 380
23284CA/W33 420 760 272 6450 11700 320 400
23088K/W33 440 650 157 2900 6050 430 530
23188K/W33 440 720 226 4910 9600 340 430
24188K30/W33 440 720 280 5900 11900 280 360
23088/W33 440 650 157 2900 6050 430 530
23188/W33 440 720 226 4910 9600 340 430
24188/W33 440 720 280 5900 11900 280 360
23988CA/W33 440 600 118 2120 4570 550 700
23092K/W33 460 680 163 3150 6860 400 500
23192K/W33 460 760 240 5450 10800 320 400
24192K30/W33 460 760 300 6660 13100 260 340
23092/W33 460 680 163 3150 6860 400 500
23192/W33 460 760 240 5450 10800 320 400
24192/W33 460 760 300 6660 13100 260 340
23996K/W33 480 650 128 2280 5480 400 500
23096K/W33 480 700 165 3280 6910 380 480
23196CAK/W33 480 790 248 5800 11400 300 380
23296K/W33 480 870 310 7350 13800 250 320
23296CAK/W33 480 870 310 7580 13800 260 340
23996/W33 480 650 128 2280 5480 400 500
23096/W33 480 700 165 3280 6910 380 480
23196CA/W33 480 790 248 5800 11400 300 380
23296/W33 480 870 310 7350 13800 250 320
23296CA/W33 480 870 310 7580 13800 260 340
23296CA/W33 480 870 310 7580 13800 260 340
23096CAK/P53/W33 480 700 165 3540 7390 380 480
23296D/W33 480 870 310 7090 13300 250 320
239/494K/W33 494 670 128 2440 6060 400 500
239/494/W33 494 670 128 2440 6060 400 500
230/500K/W33 500 720 167 3500 7600 380 480
239/500K/W33 500 670 128 2440 6060 400 500
230/500/W33 500 720 167 3500 7600 380 480
239/500/W33 500 670 128 2440 6060 400 500
230/530K/W33 530 780 185 3930 8550 340 430
230/530/W33 530 780 185 3930 8550 340 430
232/530CA/W33 530 980 355 9960 18500 240 320
232/530CAK30/W33 530 980 355 9960 18500 240 320
230/530CAK/W33 YB 530 780 185 4440 9320 340 430
230/560K/W33 560 820 195 4460 10020 300 380
230/560CAK/W33 560 820 195 4700 10300 320 400
231/560K/W33 560 920 280 7990 16000 240 320
241/560CAK30/W33 560 920 355 9450 19500 190 260
230/560/W33 560 820 195 4460 10020 300 380
230/560CA/W33 560 820 195 4700 10300 320 400
231/560/W33 560 920 280 7990 16000 240 320
241/560CA/W33 560 920 355 9450 19500 190 260
231/560CA/C4W33S2 560 920 280 7750 15300 240 320
239/560CA/W33 560 750 140 3150 7220 420 580
230/600K/W33 600 870 200 4810 11000 300 380
241/600K30/W33 600 980 375 10400 21300 180 240
230/600/W33 600 870 200 4810 11000 300 380
241/600/W33 600 980 375 10400 21300 180 240
230/630K/W33 630 920 212 5360 12200 260 340
230/630/W33 630 920 212 5360 12200 260 340
239/670K/W33 670 900 170 4130 9840 260 340
230/670K/W33 670 980 230 6240 13700 240 320
239/670/W33 670 900 170 4130 9840 260 340
230/670/W33 670 980 230 6240 13700 240 320
232/670CAK30/C3W33 670 1220 438 15500 30200 190 250
240/670CA/C4W33S2 670 980 308 8440 19700 220 300
241/670CAK30/C3W33 670 1090 412 12500 26900 210 280
239/710K/W33 710 950 180 4290 10900 240 320
230/710K/W33 710 1030 236 6530 15130 220 300
241/710K30/W33 710 1150 438 13700 29940 150 190
239/710/W33 710 950 180 4290 10900 240 320
230/710/W33 710 1030 236 6530 15130 220 300
241/710/W33 710 1150 438 13700 29940 150 190
240/710CA 710 1030 315 8890 20700 210 290
230/750K/W33 750 1090 250 7890 17600 200 280
230/750/W33 750 1090 250 7890 17600 200 280
FD-240/750/W33 750 1090 335 9340 22300 180 260
232/750CAK30F1/C3W33 750 1360 475 18500 35700 150 210
249/800K30/W33 800 1060 258 7170 19030 200 280
230/800K/W33 800 1150 258 8630 20000 190 260
240/800K30/W33 800 1150 345 10000 25700 170 220
249/800/W33 800 1060 258 7170 19030 200 280
230/800/W33 800 1150 258 8630 20000 190 260
240/800/W33 800 1150 345 10000 25700 170 220
239/850K/W33 850 1120 200 6100 15800 190 260
230/850K/W33 850 1220 272 9050 21100 180 240
240/850K30/W33 850 1220 365 10000 26000 160 200
239/850/W33 850 1120 200 6100 15800 190 260
230/850/W33 850 1220 272 9050 21100 180 240
240/850/W33 850 1220 365 10000 26000 160 200
240/850/YA 850 1220 365 10000 26000 160 200
240/850CA/C4W33S2 850 1220 365 11700 28900 160 200
238/850CA/C4W33S2 850 1030 136 3640 10300 170 210
240/850D-5/W333X 850 1220 365 10700 26000 160 200
FD-239/850CA/W33 850 1120 200 6010 15300 190 260
240/900K30/W33 900 1280 375 12200 31100 150 190
26/900/C3W33XYA3 900 1270 365 12200 31100 160 200
240/900/W33 900 1280 375 12200 31100 150 190
240/1000K30/W33 1000 1420 412 15000 40000 120 160
240/1000/W33 1000 1420 412 15000 40000 120 160
241/1000CAK30/W33 1000 1580 580 24500 56700 110 150
230/1000CA/W33C4 1000 1420 308 12000 29000 190 250
230/1120CA/C4 YB 1120 1580 345 14400 34800 90 120
230/1180K/W33 1180 1660 355 15500 38400 90 120
230/1180/W33 1180 1660 355 15500 38400 90 120
249/1180D/C3W33X 1180 1540 500 12900 36000 ㅡ ㅡ
539/1200CA/W33C3 1200 1500 280 10000 29700 80 120
240/1250CA/C4 YB 1250 1750 500 20000 52600 80 105
240/1320D/C3W33X 1320 1850 815 21900 57200 ㅡ ㅡ
240/1320D/C3W33X-1 1320 1850 666 21900 57200 ㅡ ㅡ
240/1320CAF/C3W33 1320 1850 530 23900 64400 70 90
239/1440F3/C3W33 1440 1760 315 12000 39200 75 95
Designation Principal dimensions
d D
mm mm
22205CAK/W33 25 52
22205CA/W33 25 52
22206CK/W33 30 62
22206X1CNK 30 68
22206C/W33 30 62
22206X1CN 30 68
22207K/W33 35 72
22207/W33 35 72
22208CK/W33 40 80
22308CK/W33 40 90
22308K/W33 40 90
22208C/W33 40 80
22308C/W33 40 90
22308/W33 40 90
22209CK/W33 45 85
22209K/W33 45 85
22309CK/W33 45 100
22209C/W33 45 85
22209/W33 45 85
22309C/W33 45 100
22310/W33 50 110
22210CK/W33 50 90
22210CA/W33 50 90
22310CK/W33 50 110
22310K/W33 50 110
22210C/W33 50 90
22210CA/W33 50 90
22310C/W33 50 110
22211CK/W33 55 100
22211CAK/W33 55 100
22311CK/W33 55 120
22211C/W33 55 100
22211CA/W33 55 100
22311C/W33 55 120
22312CAK/W33 60 130
22312C/W33 60 130
22312/W33 60 130
22312CA/W33 60 130
22212C/W33 60 110
22212CK/W33 60 110
22312CK/W33 60 130
22312K/W33 60 130
22213CK/W33 65 120
22213CAK/W33 65 120
22313K/W33 65 140
22313CAK/W33 65 140
22213C/W33 65 120
22213CA/W33 65 120
21313 65 140
22313/W33 65 140
22313CA/W33 65 140
22214CK/W33 70 125
22214K/W33 70 125
22314CK/W33 70 150
22314K/W33 70 150
22214C/W33 70 125
22314CAK/W33 70 150
22214/W33 70 125
21314 70 150
22314C/W33 70 150
22314/W33 70 150
22314CA/W33 70 150
22215 CK/W 75 130
22215K/W33 75 130
22315CK/W33 75 160
22215C/W33 75 130
22215/W33 75 130
22315C/W33 75 160
22216CK/W33 80 140
22216K/W33 80 140
22316CK/W33 80 170
22316K/W33 80 170
22216C/W33 80 140
22216/W33 80 140
22316C/W33 80 170
22316/W33 80 170
22317/W33 85 180
22217CK/W33 85 150
22217K/W33 85 150
22317K/W33 85 180
22217/W33 85 150
22217C/W33 85 150
22317ZMA/W33/C4 85 180
22318CK/W33 90 190
24018C 90 140
23218CK/W33 90 160
24018CK 90 140
22218CK/W33 90 160
22218K/W33 90 160
22318CAK/W33 90 190
22218C/W33 90 160
22318K/W33 90 190
22218/W33 90 160
23218C/W33 90 160
22318C/W33 90 190
22318CA/W33 90 190
22318/W33 90 190
22219CK/W33 95 170
22319CAK/W33 95 200
22319K/W33 95 200
22219C/W33 95 170
22319CA/W33 95 200
22319/W33 95 200
22319ZMA/W33/C4 95 200
22220CK/W33 100 180
22220CAK/W33 100 180
22220K/W33 100 180
23220CK/W33 100 180
22320CK/W33 100 215
22320CAK/W33 100 215
22220C/W33 100 180
22220CA/W33 100 180
22320K/W33 100 215
22220/W33 100 180
23220C/W33 100 180
22320C/W33 100 215
22320CA/W33 100 215
22320/W33 100 215
22320ZCA/W33 100 215
23121K/W33 105 175
23121/W33 105 175
23121N 105 175
24022C 110 170
22322CAK/W33 110 240
23122/W33 110 180
22322K/W33 110 240
23122N 110 180
23022 K/W33 110 170
24022CK30 110 170
23122 K/W33 110 180
24122K30/W33 110 180
23222 CK/W33 110 200
23022N 110 170
24122CAK30/W33 110 180
22222CK/W33 110 200
23022/W33 110 170
22222K/W33 110 200
23322K/W33 110 240
24122C/W33 110 180
24122CA/W33 110 180
22222C/W33 110 200
22222/W33 110 200
23222C/W33 110 200
22322CA/W33 110 240
22322/W33 110 240
23322/W33 110 240
22322 ZMA/W33 110 240
24022CC/W33C4S2 110 170
22322CA/C3W33YA 110 240
23024K/W33 120 180
24024CAK30/W33 120 180
23124K/W33 120 200
24124CAK30/W33 120 200
24124CK30/W33 120 200
22224CK/W33 120 215
22224K/W33 120 215
23224CK/W33 120 215
23024/W33 120 180
22324CK/W33 120 260
23024N 120 180
24024CA/W33 120 180
24024C/W33 120 180
23124/W33 120 200
23124N 120 200
24124CA/W33 120 200
24124C/W33 120 200
22224C/W33 120 215
22224/W33 120 215
23224C/W33 120 215
22324C/W33 120 260
22324 ZMA/W33 120 260
24124CA/C3/YB 120 200
24126C/W33 130 210
23026K/W33 130 200
23126CAK30/W33 130 210
24126CAK30/W34 130 210
22226CK/W33 130 230
22226CAK/W33 130 230
22226K/W33 130 230
23226K/W33 130 230
22326CAK/W33 130 280
23126CA/W33 130 210
23026/W33 130 200
23026N 130 200
22226C/W33 130 230
22226CA/W33 130 230
22226/W33 130 230
23226C/W33 130 230
22326CA/W33 130 280
24126 CA/W33 130 210
24126 CA/C3W33 130 210
22326 ZMA/W33 130 280
22228CK/W33 140 250
22228CAK/W33 140 250
22228K/W33 140 250
23028K/W33 140 210
24028CK30/W33 140 210
23128CAK/W33 140 225
24128CAK30/W33 140 225
23228CK/W33 140 250
22328CAK/W33 140 300
22328K/W33 140 300
23028/W33 140 210
23028N 140 210
24028C/W33 140 210
23128CA/W33 140 225
24128CA/W33 140 225
22228C/W33 140 250
22228CA/W33 140 250
22228/W33 140 250
23228C/W33 140 250
22328CA/W33 140 300
22328/W33 140 300
24128 CC/W33/C4 140 225
22328 ZMA/W33 140 300
22230C/W33 150 270
22230/W33 150 270
23230C/W33 150 270
23030K/W33 150 225
23130CAK/W33 150 250
24130CK30/W33 150 250
24130CAK30/W33 150 250
22230CK/W33 150 270
22230K/W33 150 270
23230CK/W33 150 270
22330CAK/W33 150 320
22330K/W33 150 320
23030/W33 150 225
23130CA/W33 150 250
24130C/W33 150 250
24130CA/W33 150 250
22330CA/W33 150 320
22330/W33 150 320
22330 ZMA/W33 150 320
22330CA/C3W33YA 150 320
24030CC/W33C4S2 150 225
22332K/W33 160 340
23032K/W33 160 240
24032CK30/W33 160 240
23132K 160 270
23132CAK/W33 160 270
23232CAK 160 290
24132CK30/W33 160 270
22232CAK/W33 160 290
22232K/W33 160 290
23032N 160 240
23032/W33 160 240
24032C/W33 160 240
23132 160 270
23132CA/W33 160 270
24132C/W33 160 270
22232CA/W33 160 290
22232/W33 160 290
23232CA 160 290
22332/W33 160 340
22332ZMA/W33/C4 160 340
24032 CA/W33 160 240
23034 K/W33 170 260
24034CK30/W33 170 260
22334/W33 170 360
22234K/W33 170 310
23234CAK/W33 170 310
22334K/W33 170 360
23034N 170 260
23034/W33 170 260
24034C/W33 170 260
22234/W33 170 310
23234CA/W33 170 310
23036/W33 180 280
24036/W33 180 280
23036K/W33 180 280
24036K30/W33 180 280
23136CK/W33 180 300
23136K/W33 180 300
24136K30/W33 180 300
22236K/W33 180 320
23236CAK/W33 180 320
22336K/W33 180 380
23136C/W33 180 300
23136/W33 180 300
23136/W33YA2 180 300
23136 N 180 300
24136/W33 180 300
22236/W33 180 320
23236CA/W33 180 320
23236CA/W33YA2 180 320
22336/W33 180 380
24036C/P69 W33 180 280
23238CAK/W33 190 340
22338K/W33 190 400
23038 K/W33 190 290
24038CK30/W33 190 290
23138K/W33 190 320
22238K/W33 190 340
23138CAK/W33 190 320
24138CAK30/W33 190 320
22238 CAK/W33 190 340
2638 190 280
23038/W33 190 290
24038C/W33 190 290
23138/W33 190 320
23138CA/W33 190 320
24138CA 190 320
22238CA/W33 190 340
22238/W33 190 340
23238CA/W33 190 340
22338/W33 190 400
24140C/W33 200 340
23240/W33 200 360
23040 K/W33 200 310
23140 K/W33 200 340
24140CK30/W33 200 340
22240K/W33 200 360
23240K/W33 200 360
22340K/W33 200 420
22240/W33 200 360
23040/W33 200 310
23140/W33 200 340
22340/W33 200 420
24140CA/W33 200 340
24140CA/C3W33 200 340
23044K/W33 220 340
23144K/W33 220 370
23144CAK/W33 220 370
24144CK30/W33 220 370
22244K/W33 220 400
22244CAK/W33 220 400
23244 K/W33 220 400
22344K/W33 220 460
2644 220 320
23044/W33 220 340
23144/W33 220 370
23144CA/W33 220 370
24144C/W33 220 370
22244/W33 220 400
22244CA/W33 220 400
23244/W33 220 400
22344/W33 220 460
23248K/W33 240 440
22348K/W33 240 500
23048 K/W33 240 360
24048CAK30/W33 240 360
23148K/W33 240 400
23148CAK/W33 240 400
24148K30/W33 240 400
22248K/W33 240 440
23048/W33 240 360
24048CA/W33 240 360
23148/W33 240 400
23148CA/W33 240 400
24148/W33 240 400
22248/W33 240 440
23248/W33 240 440
22348/W33 240 500
23948CA/W33 240 320
2650 250 365
23052K/W33 260 400
23152/W33 260 440
24152/W33 260 440
24152CA/W33 260 440
24052CAK30/W33 260 400
23152K/W33 260 440
24152K30/W33 260 440
24152CAK30/W33 260 440
24152CK30/W33 260 440
22252CAK/W33 260 480
23252CAK/W33 260 480
22352K/W33 260 540
24052CA/W33 260 400
23052/W33 260 400
24152C/W33 260 440
22252CA/W33 260 480
23252CA/W33 260 480
2652 260 490
22352/W33 260 540
23952CA/W33 260 360
23056K/W33 280 420
23056CAK/W33 280 420
24056CAK30/W33 280 420
23156K/W33 280 460
23156CAK/W33 280 460
24156K30/W33 280 460
22256K/W33 280 500
23256 K/W33 280 500
22356K/W33 280 580
23056/W33 280 420
23056CA/W33 280 420
24056CA/W33 280 420
23156/W33 280 460
23156CA/W33 280 460
24156/W33 280 460
22256/W33 280 500
23256/W33 280 500
22356/W33 280 580
23956CA/W33 280 380
24156/W33/YA1 280 500
23160K/W33 300 500
23160CAK/W33 300 500
24160CK30/W33 300 500
23960CK/W33 300 420
24060CAK30/W33 300 460
23060K/W33 300 460
23060CAK/W33 300 460
24060CA/W33 300 460
24160CAK30/W33 300 500
24160K30/W33 300 500
22260K/W33 300 540
23060CA/W33 300 460
23960C/W33 300 420
23060/W33 300 460
23160/W33 300 500
23160CA/W33 300 500
24160C/W33 300 500
24160CA/W33 300 500
24160/W33 300 500
22260/W33 300 540
23160CC/C3W33 300 500
23964K/W33 320 440
23064K/W33 320 480
23064CAK/W33 320 480
24064K30/W33 320 480
23164CAK/W33 320 540
24164K30/W33 320 540
23264K/W33 320 580
23964/W33 320 440
23064/W33 320 480
23064CA/W33 320 480
24064/W33 320 480
23164CA/W33 320 540
24164/W33 320 540
23264/W33 320 580
24164/W33/YA 320 580
23968K/W33 340 460
23068K/W33 340 520
24068K30/W33 340 520
24068CAK30/W33 340 520
23168CAK/W33 340 580
24168CAK30/W33 340 580
24168CA/W33 340 580
23068/W33 340 520
23968/W33 340 460
24068/W33 340 520
24068CA/W33 340 520
23168CA/W33 340 580
23972K/W33 360 480
23072K/W33 360 540
23972/W33 360 480
23072/W33 360 540
23072CAK/W33 360 540
24072CK30/W33 360 540
24072CAK30/W33 360 540
23172K/W33 360 600
24172K30/W33 360 600
22372K/W33 360 750
23072CA/W33 360 540
24072C/W33 360 540
24072CA/W33 360 540
23172/W33 360 600
24172/W33 360 600
22372/W33 360 750
24172C 360 600
23976K/W33 380 520
23076 K/W33 380 560
23076CAK/W33 380 560
24076K30/W33 380 560
23176 K/W33 380 620
23176CAKQ1/W33 380 620
22376K/W33 380 780
22376/W33 380 780
23976/W33 380 520
23076/W33 380 560
23076CA/W33 380 560
24076/W33 380 560
23176/W33 380 620
23176CAQ1/W33 380 620
23076C 380 560
23080K/W33 400 600
2680K/W33 400 590
23180K/W33 400 650
23280 K/W33 400 720
24280K30/W33 400 720
22380K/W33 400 820
23180/W33 400 650
23280/W33 400 720
2680/W33 400 590
23080/W33 400 600
24280/W33 400 720
22380/W33 400 820
23080CA/C3W33 400 600
3G3-316 401 720
24084K30/W33 420 620
23184K/W33 420 700
24184CAK30/W33 420 700
23284CAK/W33 420 760
23084/W33 420 620
23184/W33 420 700
24184CA/W33 420 700
23284CA/W33 420 760
23088K/W33 440 650
23188K/W33 440 720
24188K30/W33 440 720
23088/W33 440 650
23188/W33 440 720
24188/W33 440 720
23988CA/W33 440 600
23092K/W33 460 680
23192K/W33 460 760
24192K30/W33 460 760
23092/W33 460 680
23192/W33 460 760
24192/W33 460 760
23996K/W33 480 650
23096K/W33 480 700
23196CAK/W33 480 790
23296K/W33 480 870
23296CAK/W33 480 870
23996/W33 480 650
23096/W33 480 700
23196CA/W33 480 790
23296/W33 480 870
23296CA/W33 480 870
23296CA/W33 480 870
23096CAK/P53/W33 480 700
23296D/W33 480 870
239/494K/W33 494 670
239/494/W33 494 670
230/500K/W33 500 720
239/500K/W33 500 670
230/500/W33 500 720
239/500/W33 500 670
230/530K/W33 530 780
230/530/W33 530 780
232/530CA/W33 530 980
232/530CAK30/W33 530 980
230/530CAK/W33 YB 530 780
230/560K/W33 560 820
230/560CAK/W33 560 820
231/560K/W33 560 920
241/560CAK30/W33 560 920
230/560/W33 560 820
230/560CA/W33 560 820
231/560/W33 560 920
241/560CA/W33 560 920
231/560CA/C4W33S2 560 920
239/560CA/W33 560 750
230/600K/W33 600 870
241/600K30/W33 600 980
230/600/W33 600 870
241/600/W33 600 980
230/630K/W33 630 920
230/630/W33 630 920
239/670K/W33 670 900
230/670K/W33 670 980
239/670/W33 670 900
230/670/W33 670 980
232/670CAK30/C3W33 670 1220
240/670CA/C4W33S2 670 980
241/670CAK30/C3W33 670 1090
239/710K/W33 710 950
230/710K/W33 710 1030
241/710K30/W33 710 1150
239/710/W33 710 950
230/710/W33 710 1030
241/710/W33 710 1150
240/710CA 710 1030
230/750K/W33 750 1090
230/750/W33 750 1090
FD-240/750/W33 750 1090
232/750CAK30F1/C3W33 750 1360
249/800K30/W33 800 1060
230/800K/W33 800 1150
240/800K30/W33 800 1150
249/800/W33 800 1060
230/800/W33 800 1150
240/800/W33 800 1150
239/850K/W33 850 1120
230/850K/W33 850 1220
240/850K30/W33 850 1220
239/850/W33 850 1120
230/850/W33 850 1220
240/850/W33 850 1220
240/850/YA 850 1220
240/850CA/C4W33S2 850 1220
238/850CA/C4W33S2 850 1030
240/850D-5/W333X 850 1220
FD-239/850CA/W33 850 1120
240/900K30/W33 900 1280
26/900/C3W33XYA3 900 1270
240/900/W33 900 1280
240/1000K30/W33 1000 1420
240/1000/W33 1000 1420
241/1000CAK30/W33 1000 1580
230/1000CA/W33C4 1000 1420
230/1120CA/C4 YB 1120 1580
230/1180K/W33 1180 1660
230/1180/W33 1180 1660
249/1180D/C3W33X 1180 1540
539/1200CA/W33C3 1200 1500
240/1250CA/C4 YB 1250 1750
240/1320D/C3W33X 1320 1850
240/1320D/C3W33X-1 1320 1850
240/1320CAF/C3W33 1320 1850
239/1440F3/C3W33 1440 1760

Spherical Roller Bearings

Split bearings

Split bearings

LYC’s split spherical roller bearings feature an inner and outer ring split vertically into two halves at an angle. This design allows for easier installation in applications where axial mounting is not feasible.

Key Benefits:
  • Comparable Performance: Despite the split design, these bearings provide similar load-carrying capabilities as standard spherical roller bearings.
  • Ease of Installation: The split construction simplifies mounting and disassembly, making it ideal for locations where conventional bearings would be challenging to install.
  • Lower Speed Capacity: Due to the split raceway design, these bearings typically operate at lower rotational speeds compared to non-split versions.
Suitable Applications:
  • Situations requiring simplified maintenance or replacement
  • Equipment where axial disassembly is difficult, such as in continuous conveyors and heavy-duty industrial gear systems

Designation Principal dimensions Basic load ratings Limiting speed
Dynamic Static Grease Oil
d D B Cr Cor RPM RPM
mm mm mm KN KN r/min r/min
23160D/W33X 300 500 240 2710 4940 ㅡ ㅡ
230/530D 530 780 288 3580 9110 ㅡ ㅡ
230/560D/W33 560 820 300 4060 10600 ㅡ ㅡ
230/630D/W33X 630 920 330 5650 13100 ㅡ ㅡ
239/710X1D/C4W33X 710 1030 370 5070 12300 ㅡ ㅡ
26/750D/C4 750 1090 310 7670 17000 ㅡ ㅡ
230/750D/W33X 750 1090 310 7670 17000 ㅡ ㅡ
26/800D/W33X 800 1200 450 10100 22100 ㅡ ㅡ
240/850D/W33 850 1220 660 10700 27800 ㅡ ㅡ
240/850D-1/W33 850 1220 540 9320 27800 ㅡ ㅡ
26/900D/C3W33X 900 1270 470 11100 33400 ㅡ ㅡ
230/950D/W33X 950 1360 420 10900 25500 ㅡ ㅡ
Designation Principal dimensions
d D
mm mm
23160D/W33X 300 500
230/530D 530 780
230/560D/W33 560 820
230/630D/W33X 630 920
239/710X1D/C4W33X 710 1030
26/750D/C4 750 1090
230/750D/W33X 750 1090
26/800D/W33X 800 1200
240/850D/W33 850 1220
240/850D-1/W33 850 1220
26/900D/C3W33X 900 1270
230/950D/W33X 950 1360
